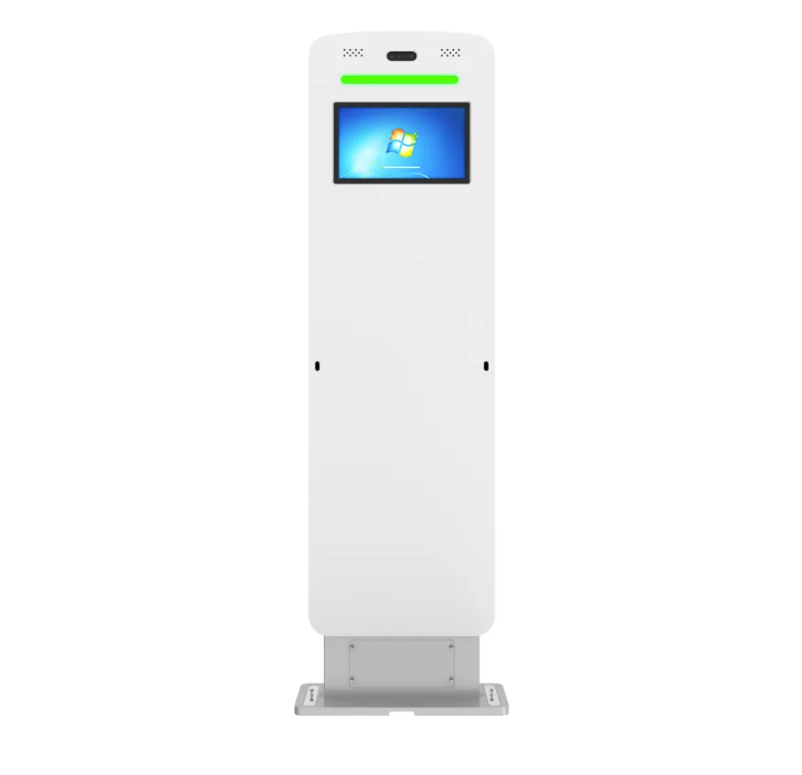

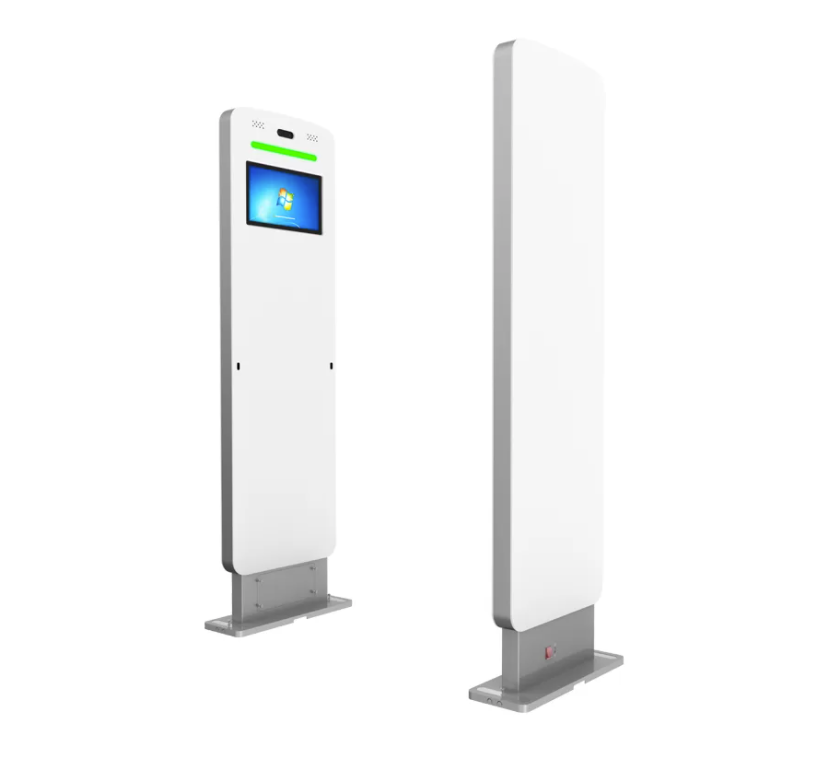

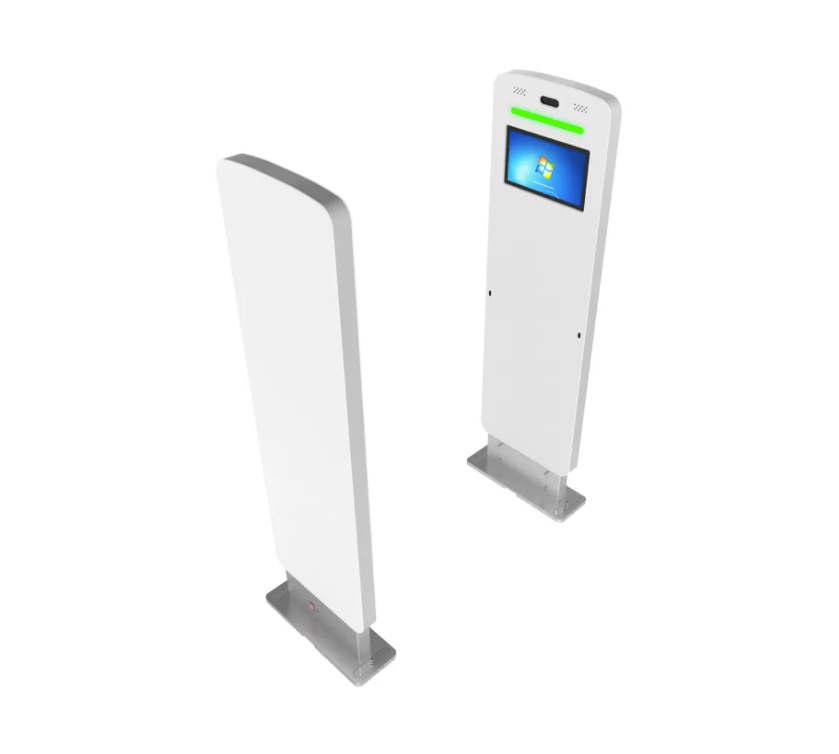

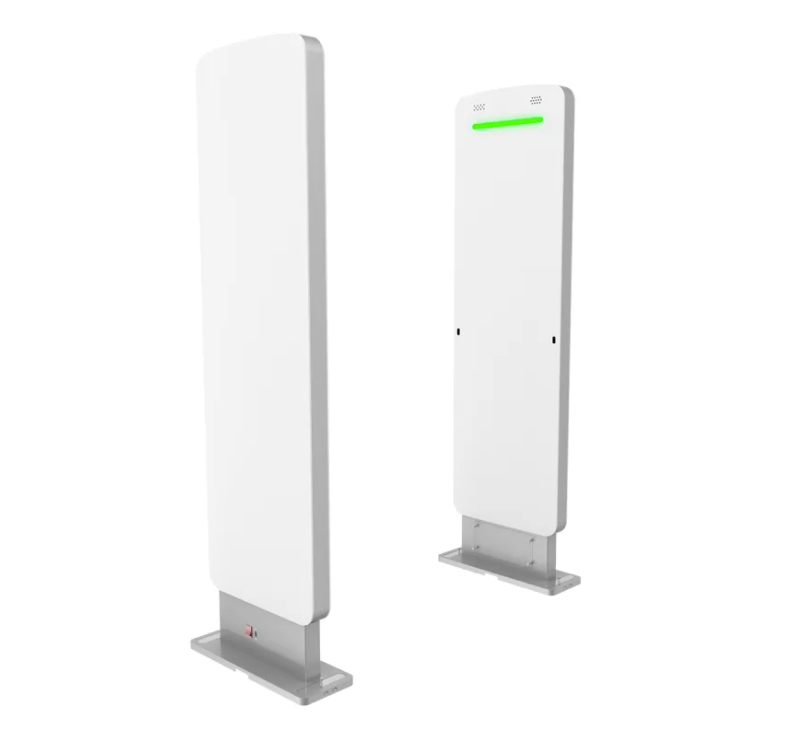

UHF RFID Gate portal reader is applicable to library, archive room, exhibition hall, concert, supermarket, warehouse and other RFID tag items anti-theft, quantity statistics, sound and light alarm and other functions
|
| RF SPECIFICATION |
|
|
Identification Method |
UHF |
|
Frequency Range |
840MHz～960MHz adjustable |
|
Protocol |
EPC C1G2, ISO 18000-6B, ISO 18000-6C |
|
Frequency Band |
ETSI: 865～868MHz, JP: 916.8～920.4MHz, TW: 922.25~927.75MHz, |
|
Spacing Installation |
0-500 cm (Suggestions) |
|
Function |
RFID Read function, Multiple label identification, Label data filtering, |
|
| HARDWARE SPECIFICATION |
|
|
System Support |
Windows / Android |
|
Hardware |
I5 CPU, 4G RAM, 128G SSD / RK3399 CPU, 4G RAM, 32G SSD (optional) |
|
Display |
1920 x 1080, 14-inch capacitive touch screen |
|
Communication |
RJ45 / RS232 |
|
|FUNCTION SELECTION |
|
|
RFID Reader |
Standard |
|
Face Recognition |
Optional |
|
Sound Light Alarm |
Optional |
|
Voice Broadcast |
Optional |
|
Wireless Network |
WiFi / 4G |
|
| BASIC SPECIFICATION |
|
|
Material |
Aluminum alloy, acrylic |
|
Power Supply |
AC 110-220V 50Hz 150W |
|
Working Humidity |
10%RH~90%RH |
|
Operat Temperature |
0 ºC ~ 60 ºC |
|
Size |
52 x 18 x 166.5 cm |
